| Brand Name: | p&f |
| Model Number: | FI-PFH-NS0137-R |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Negotiable |
| Payment Terms: | T/T |

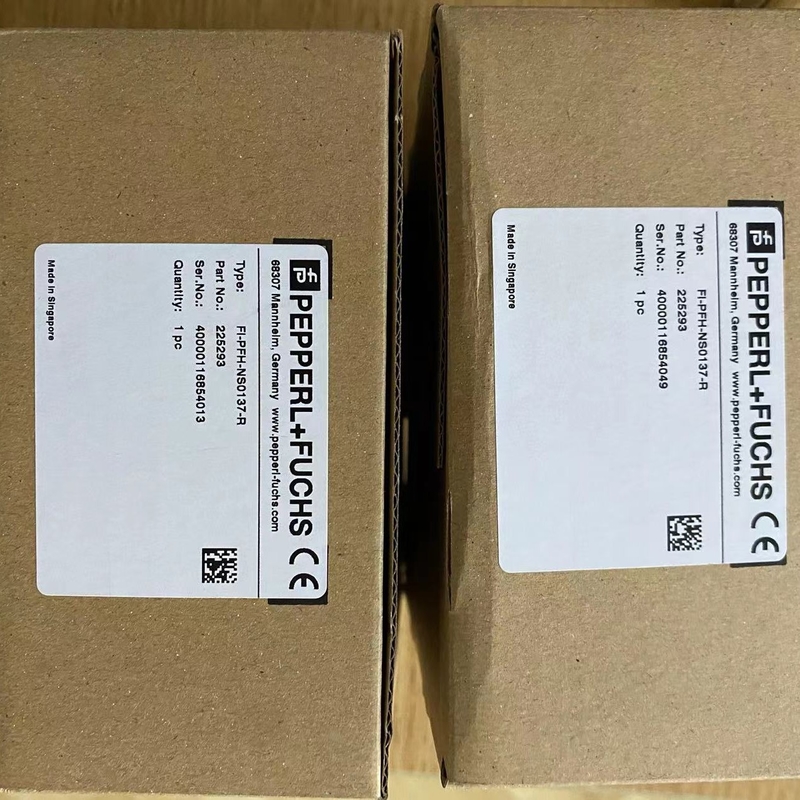

The Pepperl+Fuchs FI-PFH-NS0137-R is a 16-channel HART termination board designed for use within the K-System HART Multiplexer family. It provides an interface for connecting HART devices and features integrated, switchable 220 Ω load resistors for each channel. This module connects via screw terminals and includes DIP switches to select the operating mode with or without the load resistor. It is certified for use in hazardous areas with an Ex nA IIC T4 Gc rating.
| Property | Value |
| Connection Method | Screw Terminals |
| Operating Voltage | According to K-System Multiplexer Specifications |
| Power Consumption | Dependent on Number of Connected Field Devices |
| Operating Temperature | 0 °C to +50 °C |
| Storage Temperature | -40 °C to +85 °C |
| Weight | Approx. 200 g |
| Property | Value |
| Product Model | FI-PFH-NS0137-R |
| Product Type | HART Signal Conditioning Termination Board |
| Number of Channels | 16 Channels |
| Primary Function | Signal Termination and Interface for HART Multiplexer Systems |
| Integrated Resistors | 16 Integrated 220 Ω Load Resistors |
| Resistor Control | Individual Resistor Switching per Channel via DIP Switches |
| Property | Value |
| Explosion Protection Certification | ATEX, IECEx |
| Explosion Protection Marking | Ex nA IIC T4 Gc |
| Protection Rating | IP20 (Requires Installation in Appropriate Housing) |
| Suitable for Zones | Zone 2 |
| Certificate Number | Refer to Product Label or Latest Certification Documentation |
| Compatibility | Compatible with K-System Multiplexer Modules (e.g., KFD2-SH-Ex2.*) |
